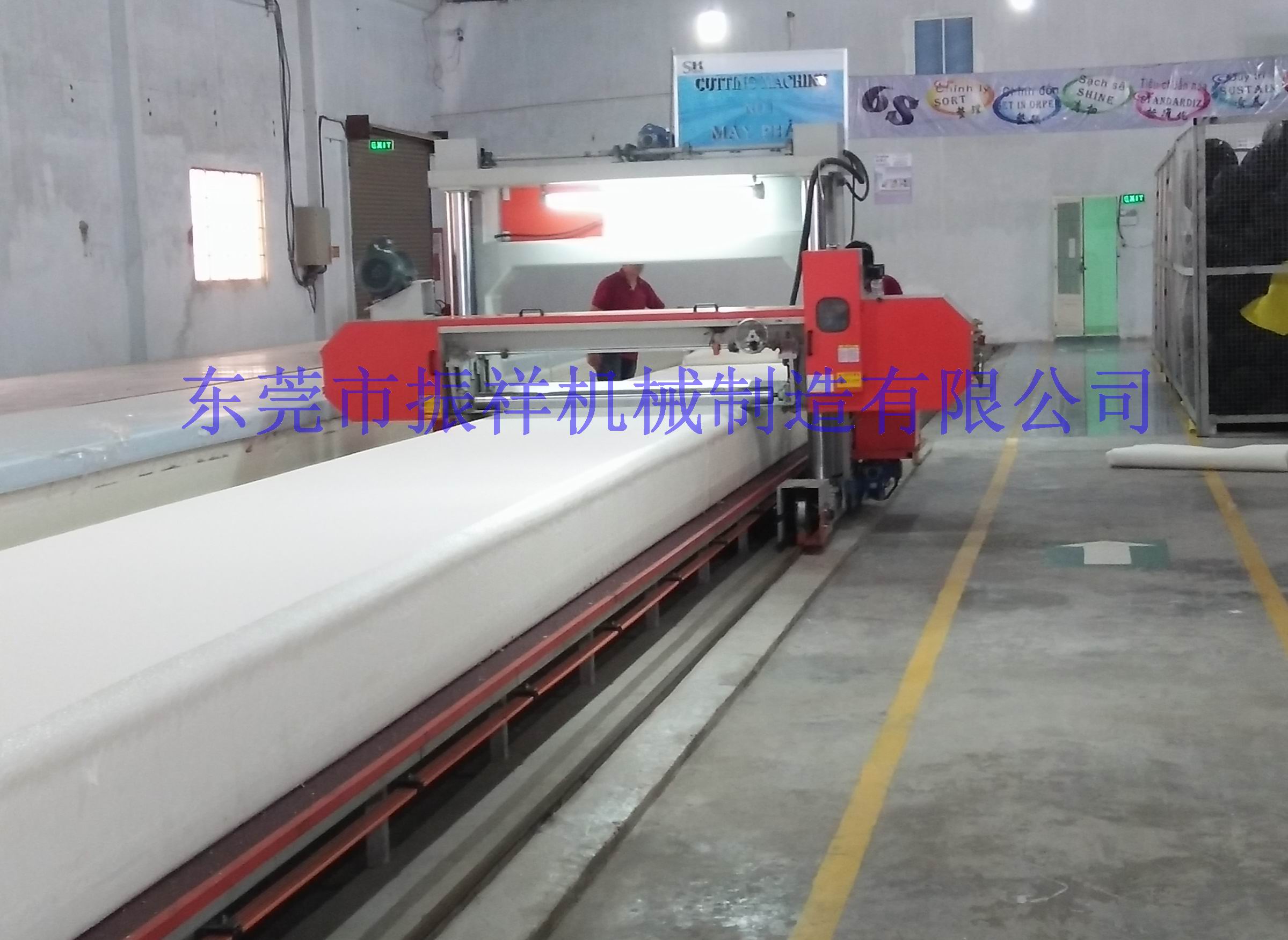

This Machine is mainly used for cutting the long block foam into slices, setting the data by control box as need cutting thickness and foam density, the machine automatically runs on the rail and cutting the foam. Easy operation, high production efficiency, it is the necessary equipment for continuously foaming produced. (This machine can choose the automatic-received equipment). This machine can choose the steel worktable, which h can increasing the friction between foam and worktable to enhance the utilization ratio of foam.
|
Model |
ZXLG -1650 |
ZXLG -2150 |
ZXLG -2350 |
||
|
Cutting foam width |
W1650mm |
W2150mm |
W2350mm |
||
|
Cutting foam height |
H1200mm |
||||
|
Cutting thickness |
2~60mm |
||||
|
Treading speed |
0~60m/min |
||||
|
Blade length |
7720mm |
8720mm |
9120mm |
||
|
Total power |
8.84Kw |
||||
|
Machine weight |
1500Kg |
1800Kg |
2000Kg |
||
|
Machine external size |
L4050*W2650*H2350mm |
L4250*W2650*H2350mm |
|||
